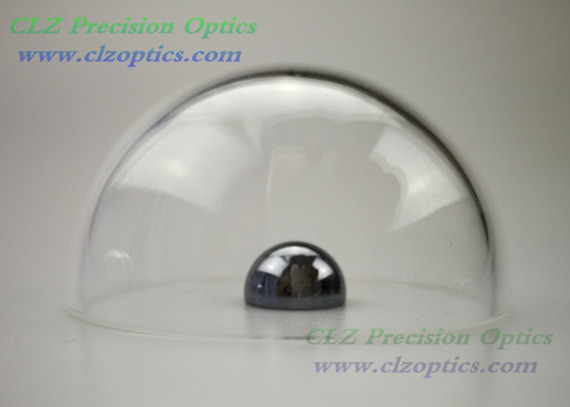

CLZ-Dome-81.5

Outside Diameter (mm)

81.50

Inside Diameter (mm)

62.1

Height (mm)

40.75

Clear Aperture CA (mm)

180°

Outside Radius  (mm)

40.75

Inside  Radius  (mm)

31.05

Chamfer

0.2mm x 45°

Wall Thickness  (mm)

9.7

Thickness irregularity   (mm)

1:0.05mm

2:0.10mm

3:0.20mm

Surface Quality

1:40-20

2:60-40

3:80-50

Transmitted Wavefront Distortion (λ)

2λ@ 632.8nm

Coating

Uncoated

Substrate

Fused Silica

RoHS

Compliant
