Achromatic Lens
Position >> Home page >> Achromatic Lens

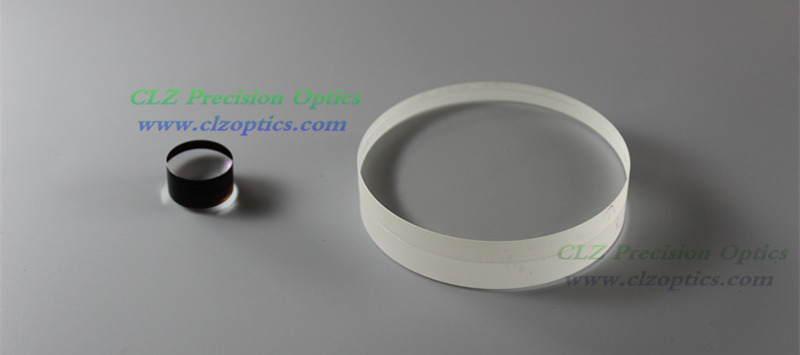

CLZ-AOC-17-1 Achromatic Lens Diameter 17mm EFL 35mm,H-ZBAF52/HZF13
Changchun Long Ze Precision Optics Co., Ltd Time：2018-8-2
| Part Number | CLZ-AOC-17-1 | ||
| Diameter (mm): | 17 | Diameter Tolerance (mm): | +0.01/-0.10 |
| Effective Focal Length EFL (mm): | 35 | Back Focal Length BFL (mm): | 31.41 |
| Substrate: | H-ZBAF52 H-ZF13 | Surface Quality: | 40-20 |
| Power (P-V) @ 632.8nm: | 1.5λ | Irregularity (P-V) @ 632.8nm: | 0.5 Waves |
| Focal Length Tolerance (%): | ±2% | Centering (arcmin): | < 3 minutes |
| Center Thickness CT (mm): | 6.6 | Center Thickness Tolerance (mm): | ±0.2 |
| Edge Thickness ET (mm): | 4.7 | Clear Aperture CA (mm): | >= 90% of Diameter |
| Type: | Achromats | Bevel: | Protective bevel as needed |
| Coating: | Uncoated | RoHS: | Compliant |
