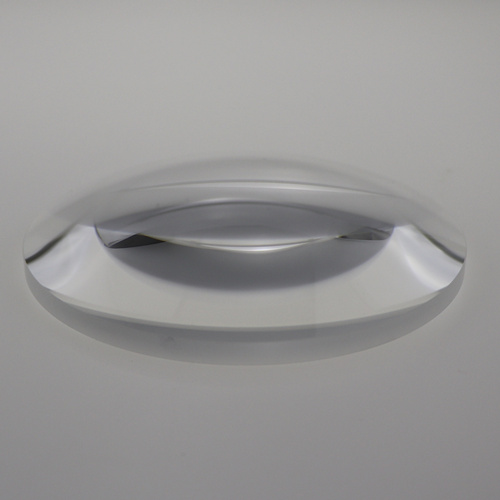

145.0mm Dia. x 250.0mm FL, Uncoated, Large Plano Convex Lens
Changchun Long Ze Precision Optics Co., Ltd Time:2018-11-19
Part Number |
LPX250145 | ||
Diameter (mm): |
145 |
Diameter Tolerance (mm): |
+0.05/-0.10 |
Effective Focal Length EFL (mm): |
250 |
Substrate: |
N-BK7 or Equivalent |
Surface Quality: |
80-50 |
Centering (arcmin): |
<3 |
Power (P-V) @ 632.8nm: |
1.5λ |
Irregularity (P-V) @ 632.8nm: |
1 λ |
Center Thickness CT (mm): |
25.90 |
Center Thickness Tolerance (mm): |
0.2 |
Edge Thickness ET (mm): |
3.7 |
Clear Aperture CA (mm): |
140 |
Type: |
Plano Convex Lens |
Bevel: |
Protective bevel as needed |
Coating: |
Uncoated |
RoHS: |
Compliant |
