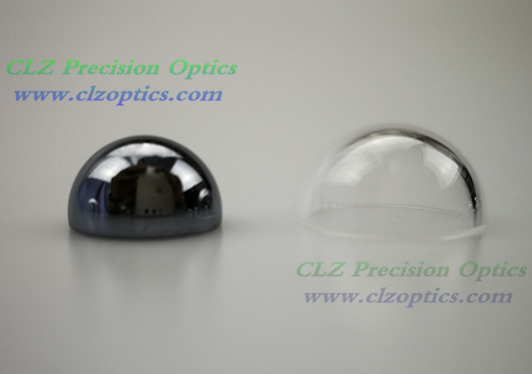

CLZ-Dome-16

Outside Diameter (mm)

16.256

Inside Diameter (mm)

13.716

Height (mm)

8.255

Clear Aperture CA (mm)

180°

Outside Radius  (mm)

8.128

Inside  Radius  (mm)

6.858

Chamfer

0.2mm x 45°

Wall Thickness  (mm)

1.27

Thickness irregularity   (mm)

1:0.05mm

2:0.10mm

3:0.20mm

Surface Quality

1:40-20

2:60-40

3:80-50

Transmitted Wavefront Distortion (λ)

2λ@ 632.8nm

Coating

Uncoated

Substrate

H-K9L

RoHS

Compliant
