Other Protection Optical Domes
Position >> Home page >> Other Protection Optical Domes

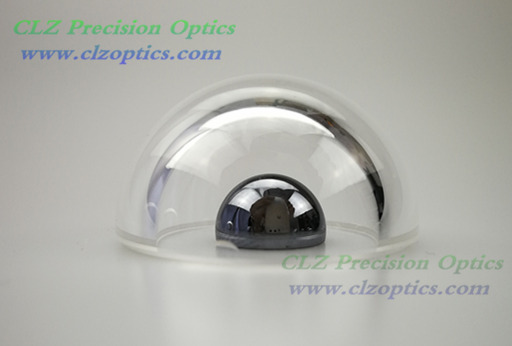

A common specification Dome window, 30mm diameter, 2mm thick, 15mm height, N-BK7 or equivalent type
Changchun Long Ze Precision Optics Co., Ltd Time：2018-11-16
|
CLZ-Dome-30E | |||
|
Outside Diameter (mm) |
30 |
Inside Diameter (mm) |
26 |
|
Height (mm) |
15.0 |
Clear Aperture CA (mm) |
180° |
|
Outside Radius (mm) |
15.0 |
Inside Radius (mm) |
13.0 |
|
Chamfer |
0.2mm x 45° |
Wall Thickness (mm) |
2.0 |
|
Thickness irregularity (mm) |
1:0.05mm 2:0.10mm 3:0.20mm |
Surface Quality |
1:40-20 2:60-40 3:80-50 |
|
Transmitted Wavefront Distortion (λ) |
2λ@ 632.8nm |
Coating |
Uncoated |
|
Substrate |
H-K9L |
RoHS |
Compliant |
