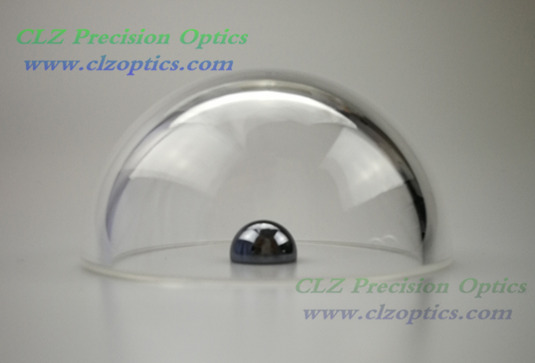

Dome window, 60mm diameter, 5mm thick, 30mm height, N-BK7 or equivalent type Optical dome
Changchun Long Ze Precision Optics Co., Ltd Time：2018-11-16
|
CLZ-Dome-60A | |||
|
Outside Diameter (mm) |
60 |
Inside Diameter (mm) |
50 |
|
Height (mm) |
30 |
Clear Aperture CA |
180° |
|
Outside Radius (mm) |
30 |
Inside Radius (mm) |
25 |
|
Chamfer |
0.3mm x 45° |
Wall Thickness (mm) |
5.0 |
|
Thickness irregularity (mm) |
0.05mm |
Surface Quality |
60-40 |
|
Transmitted Wavefront Distortion (λ) |
2λ@ 632.8nm |
Coating |
Uncoated |
|
Substrate |
H-K9L |
RoHS |
Compliant |
