Other Protection Optical Domes
Position >> Home page >> Other Protection Optical Domes

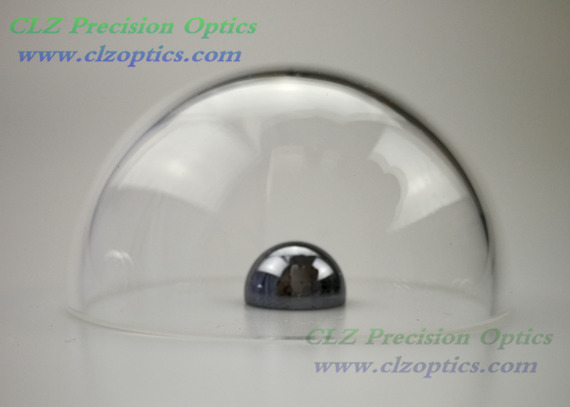

Dome window, 85mm diameter, 5mm thick, 42.5mm height, N-BK7 or equivalent type Optical dome
Changchun Long Ze Precision Optics Co., Ltd Time：2018-11-16
|
CLZ-Dome-123.85 | |||
|
Outside Diameter (inch) |
4.875 |
Inside Diameter (inch) |
4.125 |
|
Height (inch) |
2.438 |
Clear Aperture CA |
180° |
|
Outside Radius (inch) |
2.4375 |
Inside Radius (inch) |
2.0625 |
|
Chamfer |
0.2mm x 45° |
Wall Thickness (inch) |
0.375 |
|
Thickness irregularity (mm) |
2:0.10mm |
Surface Quality |
2:60-40 |
|
Transmitted Wavefront Distortion (λ) |
2λ@ 632.8nm |
Coating |
Uncoated |
|
Substrate |
H-K9L |
RoHS |
Compliant |
