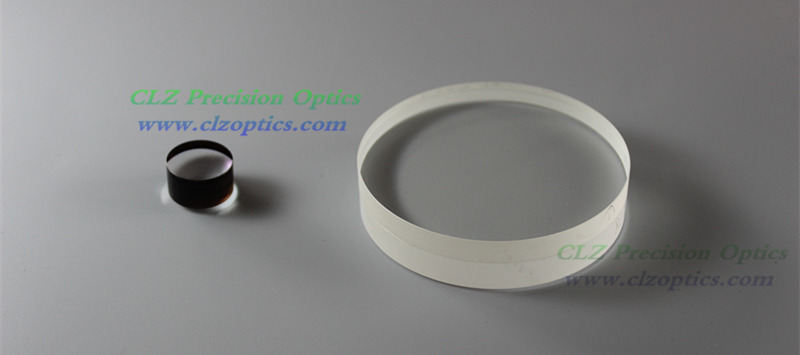

An achromatic lens, also referred to as an achromat, typically consists of two optical components cemented together, usually a positive low-index (crown) element and a negative high-index (flint) element. In comparison to a singlet lens, or singlet for short, which only consists of a single piece of glass, the additional design freedom provided by using a doublet design allows for further optimization of performance. Therefore, an achromatic lens will have noticeable advantages over a comparable diameter and focal length singlet.
An achromatic lens comes in a variety of configurations, most notably, positive, negative, triplet, and aspherized. It is important to note that it can be a doublet (two elements) or triplet (three elements); the number of elements is not related to the number of rays for which it corrects. In other words, an achromatic lens designed for visible wavelengths corrects for red and blue, independent of it being a doublet or triplet configuration.

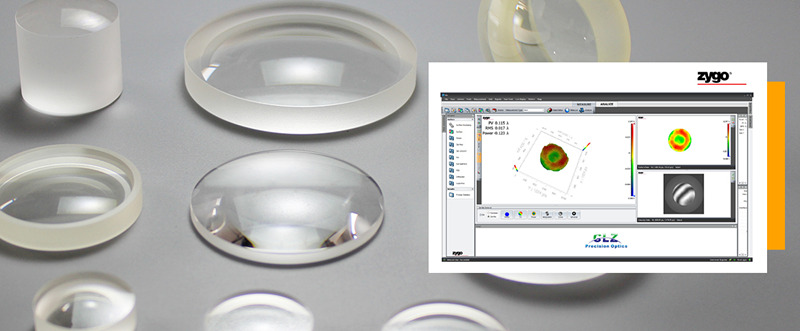

CLZ Precision Optics specialize in manufacturing optical components from customer supplied designs, including a wide variety of Achromatic Lens.We can provide Featuring surface accuracy to less than 0.2 fringe measured at 633nm and finishes to 20-10 scratch-dig per MIL-PRF 13830, the material are fabricated from quartz, optical glass, silicon, etc. and the sizes up to 200mm diameter.
For any inquiry about Achromatic Lens, please contact us: info@clzoptics.com
CLZ-AOC-40-2 Achromatic Lens Diameter 40mm EFL 300mm,H-K9L/H-ZF2
CLZ-AOC-40-1 Achromatic Lens Diameter 40mm EFL 169.7mm,H-K9L/H-ZF1
CLZ-AOC-36-1 Achromatic Lens Diameter 36mm EFL 115mm,H-K9L/H-ZF2
CLZ-AOC-25.4-1 Achromatic Lens Diameter 25.4mm EFL 200mm,H-K9L/H-F3
CLZ-AOC-20-2 Achromatic Lens Diameter 20mm EFL 52.7mm,H-K9L/H-ZF2
CLZ-AOC-20-1 Achromatic Lens Diameter 20mm EFL 55mm,H-K9L/H-ZF2
CLZ-AOC-17-2 Achromatic Lens Diameter 17mm EFL 90mm,H-K9L/H-F3
CLZ-AOC-17-1 Achromatic Lens Diameter 17mm EFL 35mm,H-ZBAF52/HZF13
